Options for Accessing Carrier Ethernet Services | Ethernet over Fiber | Ethernet over Copper

As cloud services, medical imaging, video streaming, and other bandwidth hungry applications continue to drive requirements for faster and cost-effective networks, Ethernet has become a technology of choice for many businesses and institutions. Although Ethernet was initially developed for short reach Local Area Network (LAN) applications, it has been extended to cover Wide Area Network (WAN) applications. This article focuses on how off-net subscribers access Ethernet WAN or carrier Ethernet services.

Ethernet was first developed for Local Area Networking for modest data rates over coaxial copper cable. In fact, when Bob Metcalfe invented the technology in 1973, he was interested in connecting hundreds of different computers and also to drive the laser printer that had just been invented.



Today, Ethernet is very widely used in almost all business networks. Most computing devices have an Ethernet port and almost all business premises have Ethernet interfaces. The success of Ethernet in the local area network including its ubiquity, flexibility, scalability, low cost per bit and the ongoing development of Ethernet standards has compelled the industry to push the technology into the wide area network.

The transmission of Ethernet in the WAN is marketed as carrier Ethernet services, defined by the Metro Ethernet Forum (MEF). From the subscriber’s perspective, the most commonly used carrier Ethernet services are Ethernet Private Line (EPL), Ethernet Virtual Private Line (EVPL) and Virtual Private LAN Service (VPLS).

Ethernet Private Line

An EPL is a point-to-point private data connection with which the subscriber can securely connect two sites. EPL is increasingly becoming an alternative to older forms of leased lines such as E1/T1 because of the much higher bandwidth, lower cost per bit and the other advantages of Ethernet mentioned above. Applications of EPL include the connection of two enterprise locations such as an enterprise headquarters and its branch office or dedicated and symmetric high speed connection to the Internet.

Ethernet Virtual Private Line

An EVPL is a point to multipoint service configured to connect three or more sites. EVPL service helps businesses connect their headquarters to geographically dispersed locations such as data centers and remote offices. As an example, Limelight Networks delivers content from Los Angeles to several locations in Australia over Telstra’s EVPL service.

Virtual Private LAN Service

VPLS connects geographically dispersed physical LANS into a seamless single LAN. In an Ethernet VLAN, Ethernet devices communicate with each other as if they were on a single LAN. As an example, the University of Law (UK) resorted to using a VPLS from SSE to support researchers, students and lecturers at its sites in Birmingham, Bristol, Chester, Guildford, London Bloomsbury, London Moorgate, Manchester and York. The VPLS enabled University staff and students to communicate as if they were all at the same campus.

How to access carrier Ethernet services

For those in the market for carrier Ethernet services, the first item on the service procurement agenda is determining whether the buildings at the locations of interest are directly connected to providers’ carrier Ethernet networks.  In other words, are the buildings on-net? A number of free online tools, such as GeoQuote, are available to search network providers connected to any given building, at least in the United States.

If a building is on-net, the installation process is relatively painless and involves the connection and configuration of an Ethernet User Interface (UNI). To read more about UNI, point your browser to the article, Business Ethernet Services: Questions To Ask Before Leasing.

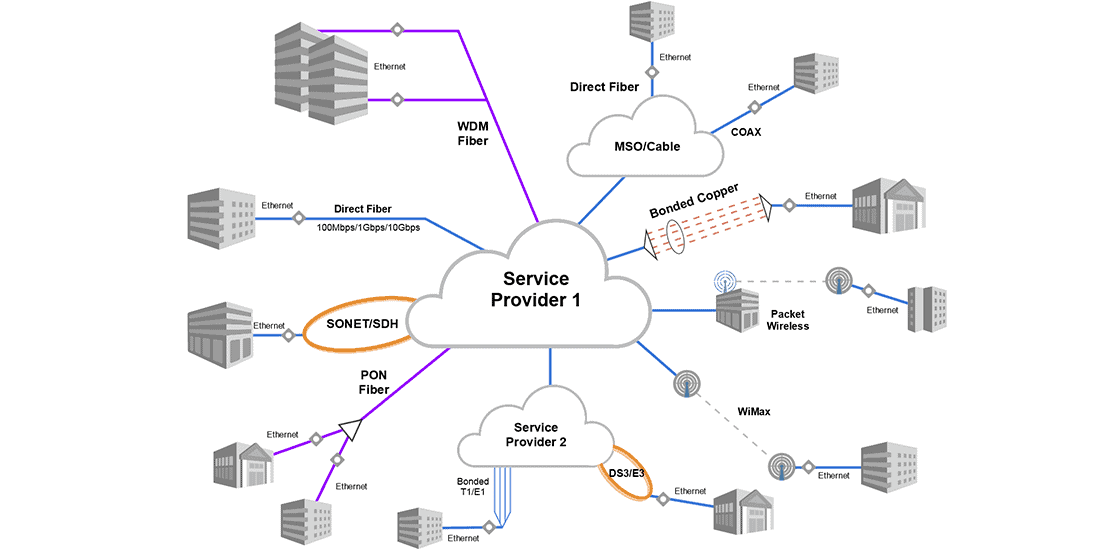

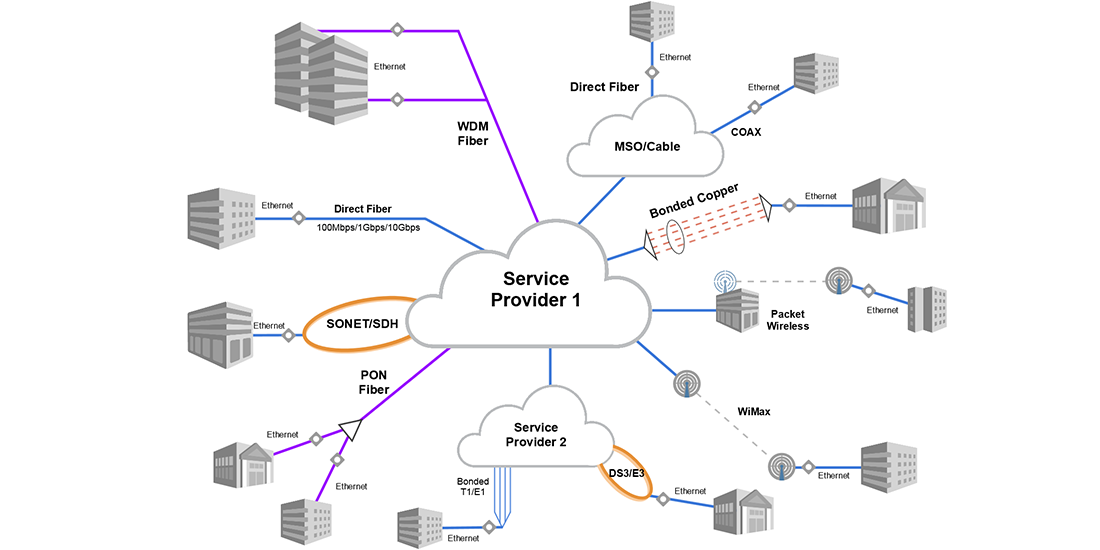

While most providers will endeavor to connect as many commercial buildings as possible, some buildings may not yet be connected or they are out of reach of a carrier Ethernet footprint. These buildings (3 in 4 of all commercial buildings) are off-net. Off-net buildings may be connected using a third party Ethernet over Fiber transport solution, Ethernet over Copper in the local loop and other transport solutions, such as Ethernet over OTN (beyond the scope of this article). Subscribers can also connect to a provider’s carrier Ethernet network through a retailer purchasing services from the provider.

Ethernet over Fiber (EoF)

The Ethernet over Fiber off-net transport option offers the most bandwidth, flexibility and reach. Typical bandwidth ranges from 10 Mbps to 10 Gbps with 100 Gbps possible in some markets. Distances of 80km from the customer location to the Ethernet point presence are possible.  Because of the investment required, this option is more suited for large Enterprise buildings, educational institutions, medical centers, National Research and Education Networks (NRENS), government departments and wholesale providers.

The EoF bandwidth capacity and reach are defined by IEEE standards. Some of the most referenced standards for EoF are 1000Base-EX and 10GBase-EX for the transport of 1 Gigabit Ethernet and 10 Gigabit Ethernet over a distance of 40km, respectively. Although IEEE defines a distance of 40km, a number of companies have come up with a proprietary guideline, 10GBASE-ZR, to extend the distance to 80km.

In addition to the above standards, typically used in a point to point configuration, IEEE has defined Ethernet Passive Optical Network (EPON) standards for point to multipoint deployments of Ethernet in the last mile (or first mile from the subscriber point of view). EPON or GEPON and 10G-EPON standards define the transmission of 1.25 Gbps and 10 Gbps over passive optical networks.

Armed with all the standards technologies, a large number of providers including North American multiple-service operators (MSOs), have deployed Ethernet ready fiber optic infrastructure to connect commercial buildings to colocation data centers. Ethernet service providers are taking full advantage of these third part transport network providers to connect end customers beyond the reach of their carrier Ethernet network footprints.

Ethernet over Copper (EoC)

Notwithstanding the mushrooming of third part off-net fiber optic transport providers and the adaption of Ethernet over Fiber technologies by a large number of MSOs – there is just not enough fiber to connect all the businesses who want to take advantage of carrier Ethernet services. Moreover, for the small business requiring sub-gigabit bandwidth and without the deep pockets to afford Ethernet over Fiber, other options are required.

For businesses requiring access to carrier Ethernet services of up to 50 Mbps, EoC is a viable option. Ethernet over Copper is a version of Ethernet technology transmitted over voice grade twisted copper pairs in the local loop – from the customer premises to the provider’s central office. Unlike DSL that can be transmitted over the same voice line, an EoC line exclusively transport Ethernet packets.

Unlike the LAN version of Ethernet conforming to the IEEE standards XBase-T (where X denotes the data rate), Ethernet over Copper or Ethernet in the last mile, was developed for transmission over longer distances of up to 2.7km. The corresponding IEEE standards for EoC are 2BASE-TL/2PASS-TL and 10PASS-TS-DMT/10PASS-TS-QAM defining the transmission of 10 Mbps over 750m and 2 Mbps over a distance of 2.7km.\

The bandwidth of EoC can be increased by bonding or transmitting signals over multiple copper pairs. Local loop providers can offer data rates of 100 Mbps at significantly lower cost/bit compared to T1 lines.

The wholesale model

It is likely that a provider you stumble upon when searching for carrier Ethernet services in your area is a retailer who purchases wholesale services from a carrier Ethernet network provider. The wholesale model makes it possible for transit providers or local loop operators to purchase Ethernet services from carrier Ethernet providers and resell to their customers. This is a great way for providers to deliver Ethernet services outside their franchise areas.

The MEF E-Access standard enables transit providers to seamlessly connect their networks with an Ethernet provider, thereby extending the provider’s carrier Ethernet network beyond the footprint. The two networks are connected together by a Network to Network Interface (NNI).
