The unstoppable rise of enterprise AI clusters, high-performance cloud computing, and massive east-west data center traffic is forcing network architects to aggressively upgrade infrastructure. As networks migrate from legacy 10G and 40G frameworks to ultra-high-speed 400G, 800G, and 1.6 Terabit Ethernet (1.6TbE) topologies, finding cost-effective short-reach optics is paramount.

For years, SWDM (Shortwave Wavelength Division Multiplexing) served as an elegant, highly efficient solution to multiply data rates over existing duplex multimode fiber (MMF).

But as enterprise data rates skyrocket, a critical question arises: How far can SWDM actually scale, and can it survive the leap to 800G and 1.6TbE?

What Is SWDM?

SWDM (Shortwave Wavelength Division Multiplexing) adapts the foundational concepts of Coarse Wavelength Division Multiplexing (CWDM) used in long-haul single-mode networks, but optimizes them for short-reach applications over multimode fiber.

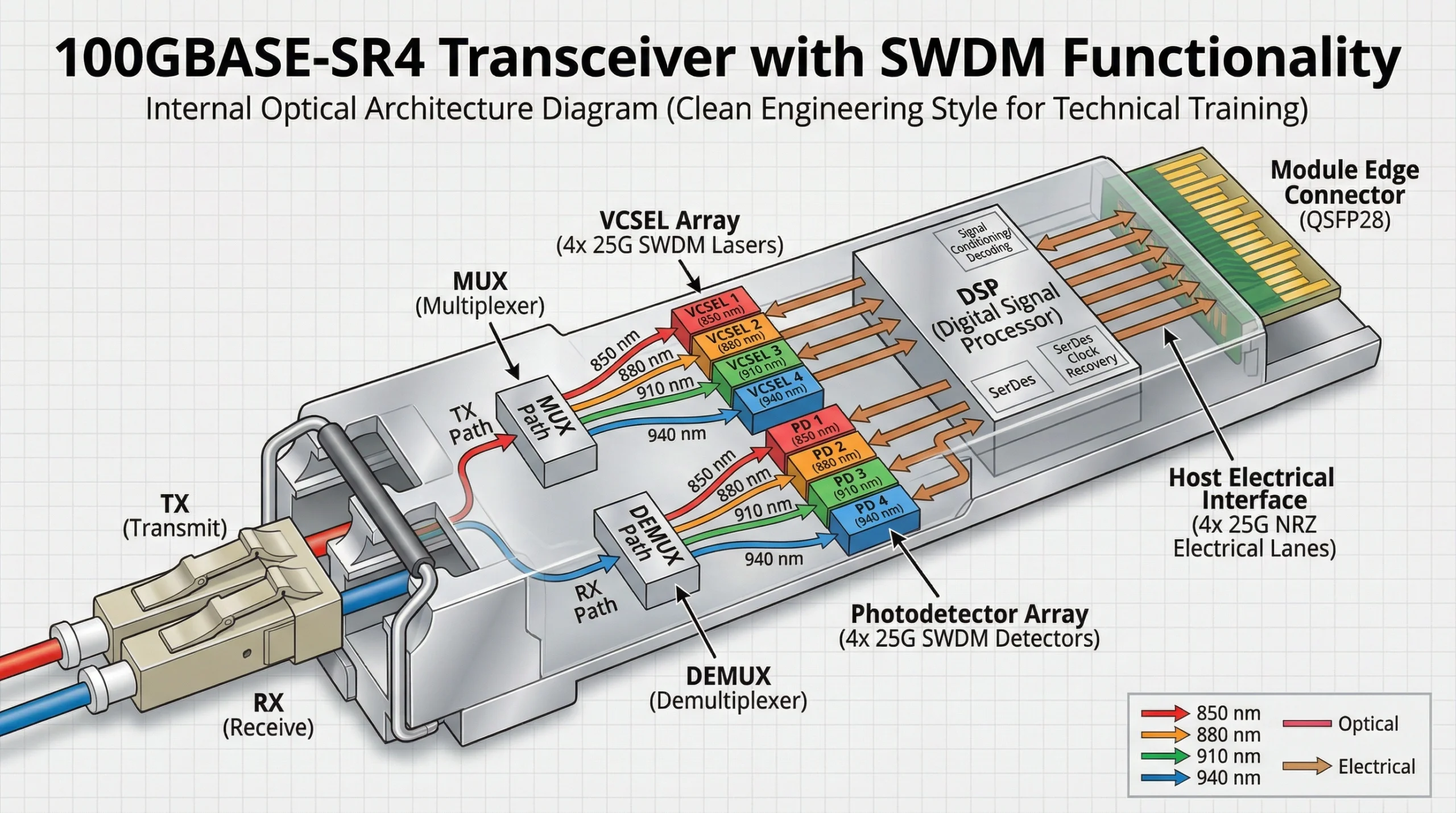

Instead of routing a single optical signal over a single fiber strand, SWDM multiplexes four distinct wavelengths across the shortwave infrared spectrum, spaced exactly 30 nm apart:

• 850 nm
• 880 nm
• 910 nm
• 940 nm

By consolidating these four individual channels onto a single duplex MMF pair, data center operators can dramatically boost throughput without altering physical patch cables.

Standard SWDM Implementations

Transceiver Type	Lane Modulation Rate	Total Aggregated Bandwidth
40G-SWDM4	4x10Gbs	40 Gbps over 1 Duplex MMF Pair
100G-SWDM4	4x25Gbps	100 Gbps over 1 Duplex MMF Pair

  Why SWDM Transformed the Enterprise Data Center

Before the advent of SWDM, scaling short-reach multimode fiber required migrating to parallel optics. Early IEEE standards define high-capacity links using multiple physical fiber strands simultaneously:

• 40GBASE-SR4: Requires 8 physical strands 4 Transmit x 10G and 4 Receive x 10G
• 100GBASE-SR10: Requires 20 physical strands 10 Transmit x 10G and 10 Receive x 10G
• 100GBASE-SR4: Requires 8 physical strands 4 Transmit x 25G and 4 Receive x 25G

Transitioning to parallel optics meant operators had to tear out standard duplex LC patch panels and deploy expensive, complex multi-fiber push-on (MPO/MTP) ribbon cabling.

The SWDM Advantage

SWDM fundamentally solved this infrastructure challenge by offering key benefits:

• Capital Expenditure Savings: Avoids complete overhauls of legacy OM3/OM4 duplex LC infrastructure.
• Zero Optical Skew: Eliminates the physical time-of-arrival variances inherent to multi-fiber ribbon paths.
• Simplified Alignment: Sidesteps the tight tolerances and contamination vulnerabilities of high-density MPO pin arrays.

The Physical Foundation: VCSELs and OM5 Wideband MMF

The financial viability of multimode fiber relies entirely on VCSELs (Vertical-Cavity Surface-Emitting Lasers). Unlike costly single-mode edge-emitting lasers, VCSELs operate natively around the 850 nm window and are cheap to manufacture.

However, standard legacy fibers (OM3 and OM4) were only laser-optimized for tight performance exactly at 850 nm. Spanning outward to 940 nm introduces severe signal attenuation and dispersion penalties.

To unlock the true potential of SWDM, the Telecommunications Industry Association (TIA) introduced Wideband Multimode Fiber (WBMMF), ratified internationally as OM5.

Effective Modal Bandwidth (EMB)

OM5 wideband fiber guarantees a high Effective Modal Bandwidth (EMB) and controlled attenuation across the entire 850 nm to 953 nm spectrum. This ensures that all four SWDM channels experience uniform, low-distortion transmission, maintaining signal integrity over standard data center reach distances.

Can SWDM Scale to 400G?

Technically, yes. Advanced engineering designs have achieved higher capacities by pairing SWDM with advanced pulse-amplitude modulation (PAM4):

50G (PAM4) x 4 = 200G-SWDM4

100G (PAM4) x 4 = 400G-SWDM4

However, scaling SWDM to 400G pushes multimode technology to its physical limits. At these data rates, chromatic and modal dispersion severely degrade the light signals. Combined with the thermal and power constraints of forcing high-baud-rate VCSELs across broad wavelength ranges, 400G SWDM configurations over duplex MMF struggle to reach viable commercial distances.

The Hard Reality: Can SWDM Support 800G or 1.6TbE?

As network architects look toward emerging standards like IEEE 802.3dj, which codifies 800GbE and 1.6TbE physical layer specifications, SWDM is conspicuously absent.

Next-generation 800G and 1.6 Terabit architectures rely on 100G or 200G per-lane electrical signaling using PAM4. Scaling an MMF system to 1.6Tb/s using SWDM would require an impossible combination:

1. VCSELs capable of modulating light at speeds well beyond current physical semiconductor thresholds.
2. Multiplexing significantly more than four wavelengths, which is completely blocked by the narrow physical transmission window of multimode glass.

Because of these fundamental material and physics constraints, single-mode fiber (SMF) architectures dominate 800G and 1.6TbE designs.

Choosing Your Path: SWDM over Multi Mode Fiber vs. Single-Mode Fiber

While SWDM remains a practical and cost-effective solution for extending the life of existing 40G and 100G multimode fiber data center infrastructures, network architects must recognize its scalability limitations. As the industry moves toward 800G, and 1.6T Ethernet, bandwidth requirements increasingly favor parallel single-mode fiber architectures and, for longer-distance applications, coherent optical technologies. Organizations planning next-generation data center networks should therefore balance the short-term benefits of SWDM with the long-term scalability and performance advantages offered by single-mode and coherent optical solutions.

Understanding these technical thresholds prevents costly architectural missteps. If your roadmap demands near-term evolution to 800G or 1.6TbE AI clusters, deploying single-mode optical infrastructure from day one is the most scalable choice.
