Optical Signal-to-Noise Ratio (OSNR)

Understanding OSNR, ASE noise, measurement, calculation and its importance in modern optical networks

Optical Signal-to-Noise Ratio (OSNR) is one of the most important performance parameters in optical communication systems. It measures the strength of an optical signal relative to the optical noise surrounding it and is particularly important in amplified DWDM networks.

As an optical signal travels through a network, optical amplifiers such as EDFAs compensate for fiber and component losses. However, every optical amplifier also introduces amplified spontaneous emission (ASE) noise. As the signal passes through multiple amplifier spans, this noise accumulates and progressively reduces OSNR.

This article explains what OSNR is, why it matters, how it is measured and calculated, how amplifier noise affects system performance, and why OSNR has become increasingly important in modern coherent 100G, 400G and 800G optical networks.

Table of Contents

What Is Optical Signal to Noise Ratio?

Optical Signal-to-Noise Ratio is the ratio of the power of an optical signal to the power of the optical noise associated with that signal, with the signal and noise referenced to the same optical bandwidth.

OSNR = Psignal / Pnoise

When OSNR is expressed in decibels:

OSNRdB = 10 log10(Psignal / Pnoise)

If signal and noise powers are both expressed in dBm and are referenced to the same bandwidth, the calculation becomes particularly simple:

OSNRdB = Psignal(dBm) − Pnoise(dBm)

For example, if a DWDM channel has a signal power of −2 dBm and the equivalent noise power is −25 dBm, then:

OSNR = −2 − (−25) = 23 dB

The bandwidth used for the signal and noise measurement is critical. OSNR is commonly normalized to a reference optical bandwidth of 0.1 nm. At approximately 1550 nm, 0.1 nm corresponds to approximately 12.5 GHz.

Key point: An OSNR value is incomplete unless its reference bandwidth is understood. A statement such as "OSNR = 23 dB" should ideally be accompanied by the reference bandwidth, for example 23 dB/0.1 nm.

Why Does OSNR Matter?

In a simple point-to-point fiber link, attenuation reduces optical power. In a long-haul DWDM system, however, optical amplifiers are used to compensate for fiber and component losses so that the signal can continue propagating without electrical regeneration. Optical amplifiers, particularly Erbium-Doped Fiber Amplifiers (EDFAs), compensate for optical losses and restore signal power, but they also introduce noise. In a conventional amplified optical link, the dominant noise contribution is Amplified Spontaneous Emission (ASE), which accumulates as the signal passes through successive optical amplifiers. As a signal passes through multiple EDFAs, the accumulated ASE increases. The result is a gradual reduction in OSNR as the optical signal travels through the network.

In an amplified optical system, OSNR is therefore fundamentally a link-budget parameter. Fiber loss, amplifier gain, amplifier noise figure, connector losses, splice losses, ROADMs, and other optical components all influence the final OSNR available to the receiver.

How Modulation Format Affects OSNR

Modern coherent optical systems use advanced modulation formats to transmit more bits in each optical symbol. Higher-order modulation increases spectral efficiency, but the constellation points become more closely spaced and the receiver becomes more sensitive to noise. For polarization-multiplexed coherent transmission, the relationship can be summarized as follows:
Modulation Format Bits/Symbol/Polarization Bits/Symbol with Dual Polarization Relative OSNR Requirement
DP-QPSK 2 4 Lowest
DP-16QAM 4 8 Higher
DP-64QAM 6 12 High
DP-128QAM 7 14 Very high
The fundamental tradeoff is:

Higher-order modulation → Higher spectral efficiency → Smaller constellation spacing → Greater OSNR requirement

Typical OSNR Ranges for Modern Coherent Modulation

There is no universal OSNR requirement for a particular modulation format. The required OSNR depends on the baud rate, Forward Error Correction (FEC) implementation, receiver architecture, implementation penalty, channel bandwidth, filtering and the performance target. Some modern coherent systems also use Probabilistic Constellation Shaping (PCS), a technique that optimizes how constellation points are used to improve transmission performance. The following table is therefore best viewed as an engineering guide rather than a set of mandatory specifications:
Approximate Data Rate Typical Modulation Approximate OSNR Design Region* Typical Application
100–200G DP-QPSK ~12–16 dB Long-haul and regional transmission
200–400G DP-16QAM ~18–22 dB Metro, DCI and regional networks
400–600G DP-64QAM ~24–28 dB High-capacity metro and regional networks
600–800G+ DP-64QAM / PCS-64QAM ~26–30 dB High-capacity DCI and metro networks
800G+ DP-128QAM and higher-order formats ~28–32+ dB Short-reach, very high-capacity applications

*Approximate engineering ranges only. Actual required OSNR depends on the specific transceiver, baud rate, FEC, implementation penalty, channel spacing, receiver design and test conditions. Implementation penalty refers to the additional OSNR required by a real optical transmitter/receiver compared with an ideal theoretical system using the same modulation format and FEC. Always use the manufacturer's specification for final system engineering.

How Ciena, Nokia and Other Vendors Specify OSNR

Optical system manufacturers generally do not specify a single OSNR value for an entire data rate. Instead, the OSNR requirement is associated with a particular transceiver or transmission mode. For example, a 400G coherent transceiver can operate using a particular modulation format, baud rate and FEC combination, while another 400G implementation may use different parameters and consequently have a different OSNR requirement. Ciena and Nokia, like other major optical-system vendors, therefore provide OSNR performance specifications for particular operating modes. These specifications are the appropriate values to use when determining whether a proposed optical link has sufficient margin.

Engineering rule: Do not design a network around a generic statement such as "400G requires 20 dB OSNR." Instead, obtain the specified OSNR tolerance or sensitivity for the exact transceiver and operating mode being deployed.

OSNR, BER and Q-Factor

OSNR is closely related to transmission quality, but it is not the same measurement as Bit Error Ratio (BER).

Bit Error Ratio (BER)

BER measures the number of incorrectly received bits relative to the total number of received bits:

BER = Number of erroneous bits / Total number of received bits

BER is ultimately a measure of the quality of the recovered digital signal. However, measuring BER requires access to the electrical or digital signal at the receiver. For a DWDM system containing many optical channels, obtaining BER for every channel can require the individual channels to be separated or demultiplexed and converted into electrical signals.

Q-Factor

Q-factor is another measure of signal quality and has traditionally been used in optical communication systems as an indicator of how close a system is to a specified BER. Modern coherent systems, however, use sophisticated digital signal processing and higher-order modulation formats, making simple legacy Q-factor measurements less representative of the complete system.

Why OSNR Is So Useful

OSNR has an important practical advantage: it can be measured in the optical domain. An Optical Spectrum Analyzer can examine the complete DWDM spectrum and estimate the OSNR of individual channels without requiring every channel to be demultiplexed and converted to an electrical signal.

BER asks: "How accurately was the digital information recovered?" OSNR asks: "How much optical signal exists relative to the optical noise?"

How Is OSNR Measured with an Optical Spectrum Analyzer?

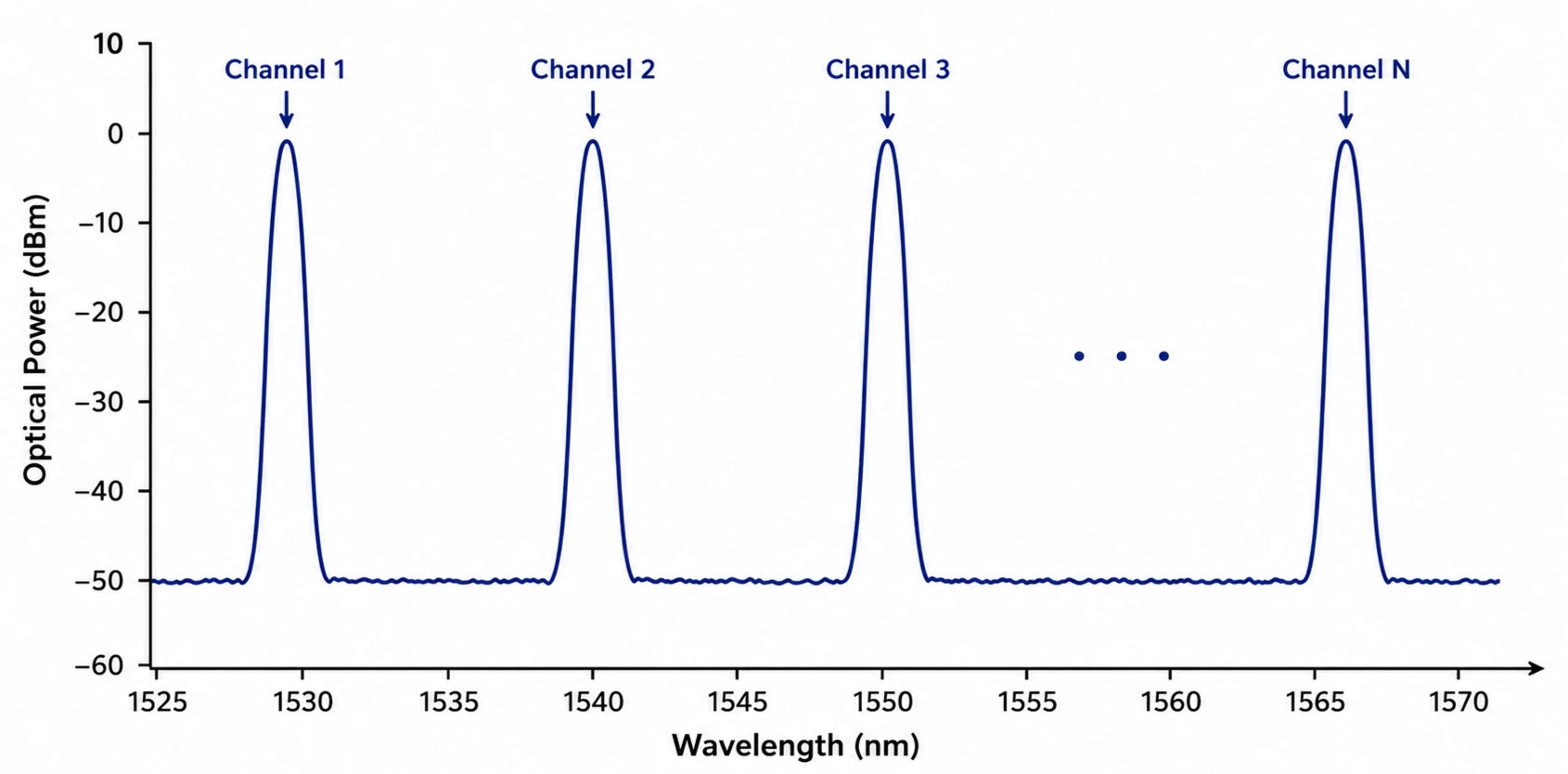

An Optical Spectrum Analyzer (OSA) displays optical power as a function of wavelength or optical frequency. For a DWDM system, the OSA might display dozens of individual channels: OSA-spectrum For each channel, the measurement system determines the channel power and estimates the optical noise associated with that channel.If the signal power is measured as: Psignal = −2 dBm and the equivalent noise power in the reference bandwidth is: Pnoise = −26 dBm then: OSNR = −2 − (−26) = 24 dB The current ITU-T guidance describes OSNR measurement from the optical spectrum and normally expresses OSNR using a 0.1 nm reference optical bandwidth.

OSA Resolution Bandwidth and OSNR

One of the most important concepts when measuring OSNR is resolution bandwidth (RBW). The OSA may measure the noise using a bandwidth different from the standard 0.1 nm reference bandwidth. The measured noise therefore has to be normalized to the selected reference bandwidth. If noise is measured using a resolution bandwidth of 0.01 nm, but OSNR is required at 0.1 nm, the noise power must be scaled by: 10 log10(0.1 / 0.01) = 10 dB Therefore, if the OSA measures: Pnoise, measured = −36 dBm, then the equivalent noise power in 0.1 nm is: Pnoise, 0.1nm = −36 + 10 = −26 dBm If the signal power is −2 dBm: OSNR = −2 − (−26) = 24 dB/0.1 nm

Remember: Noise power increases as measurement bandwidth increases. OSNR measurements made with different bandwidths cannot be directly compared unless they are normalized to the same reference bandwidth.

The Challenge of Measuring OSNR in Modern Coherent DWDM Systems

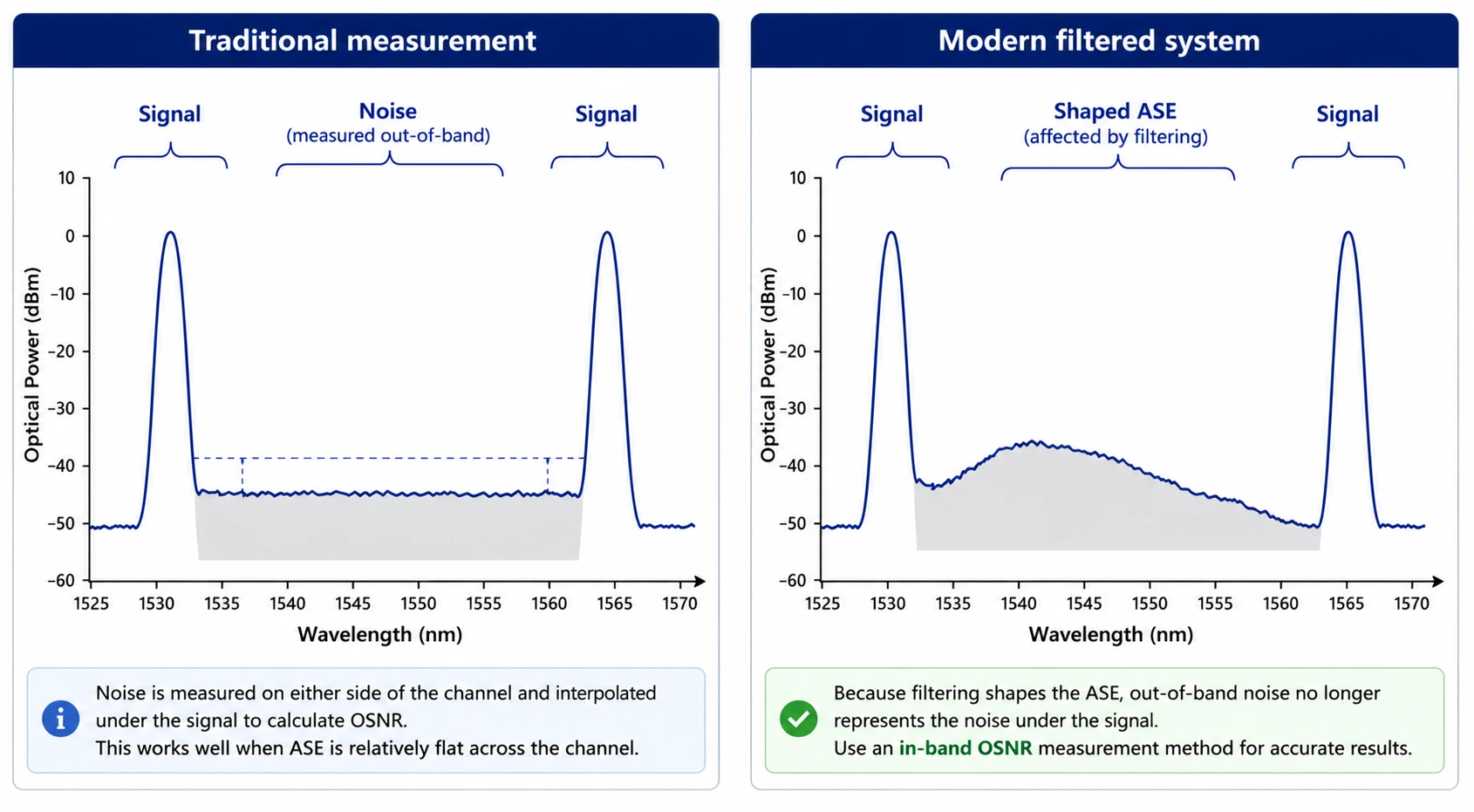

In traditional OSNR measurements, the noise is measured outside the signal channel and interpolated beneath the signal. This approach works well when the ASE noise is relatively flat across the channel. However, in modern DWDM systems, including IP over DWDM architectures, ROADMs and Wavelength Selective Switches (WSSs) can reshape the ASE spectrum, making out-of-band noise measurements less representative of the noise within the signal bandwidth. In these cases, an in-band OSNR measurement method can be used to more accurately determine the noise level within the channel itself. ASE-noise-measurement ITU-T guidance specifically cautions that conventional interpolation methods can produce inaccurate OSNR results when the noise spectrum has been altered by filtering. This has become increasingly important as optical channels move toward higher baud rates and tighter spectral spacing.

Calculating OSNR for a Single Amplified Span

The fundamental OSNR calculation begins with the noise generated by an optical amplifier. For an EDFA, the dominant noise contribution is Amplified Spontaneous Emission (ASE). A commonly used approximation for ASE power is:

PASE = 2 nsp h ν (G − 1) B

where:
  • nsp = spontaneous emission factor
  • h = Planck's constant, 6.62607015 × 10−34 J·s
  • ν = optical frequency in Hz
  • G = amplifier gain as a linear ratio
  • B = optical noise reference bandwidth in Hz
Optical frequency is calculated from:

ν = c / λ, where c is the speed of light and λ is the optical wavelength.

Noise Figure

Optical amplifier manufacturers normally specify amplifier noise performance using Noise Figure (NF), expressed in dB. For a high-gain EDFA, a commonly used approximation is: F ≈ 2 nsp where F is the noise figure expressed as a linear ratio. If the amplifier noise figure is 5 dB: F = 105/10 = 3.162 and therefore: nsp ≈ 3.162 / 2 = 1.581

OSNR Produced by One Amplifier

The signal power at the output of the amplifier is approximately: Pout = Pin G Therefore: OSNR = PinG / [2 nsp hν(G − 1)B] For a high-gain amplifier, where: G − 1 ≈ G the expression simplifies to: OSNR ≈ Pin / [2 nsp hνB] Using the high-gain relationship between noise figure and spontaneous emission factor: OSNR ≈ Pin / [F hνB]

Important physical insight: Increasing amplifier gain restores signal power lost in the fiber, but the amplifier also adds ASE. Gain therefore does not restore the original OSNR.

Calculating OSNR in a Multi-Span Optical Link

Long-haul DWDM systems commonly contain many fiber spans and optical amplifiers. Each amplifier contributes additional ASE noise to the optical link. The complete OSNR calculation therefore needs to consider every amplifier and the propagation of its noise through the remainder of the optical path. For amplifier i: PASE,i = 2 nsp,i hν(Gi − 1)B The ASE generated by each amplifier is then propagated through all subsequent gains and losses. The total ASE at the receiver can therefore be represented generally as: PASE,total = Σ PASE,i × downstream gain/loss factors The final receiver OSNR is: OSNRtotal = Psignal,rx / PASE,total

The Reciprocal OSNR Method

A particularly useful engineering formulation is to express each span or amplifier in terms of its individual OSNR contribution. When the individual contributions are referenced consistently and the applicable assumptions are satisfied:

1 / OSNRtotal = 1 / OSNR1 + 1 / OSNR2 + ... + 1 / OSNRN

or:

1 / OSNRtotal = Σ (1 / OSNRi)

This equation must be applied using linear OSNR values, not dB values. For two spans: OSNRtotal = 1 / [(1/OSNR1) + (1/OSNR2)] The result can then be converted to dB: OSNRdB = 10 log10(OSNR)

Identical Amplified Spans

If every span contributes the same OSNR and there are N identical spans:

OSNRtotal = OSNRspan / N

In dB: OSNRtotal,dB = OSNRspan,dB − 10 log10(N)

Example

Suppose an optical span has an OSNR contribution of 30 dB and the link contains ten identical spans. Because: 10 log10(10) = 10 dB the total OSNR is approximately: OSNRtotal = 30 − 10 = 20 dB This simple example illustrates why OSNR progressively deteriorates as the number of amplified spans increases.

Practical OSNR Calculation Procedure

For an actual optical link, engineers can calculate OSNR using the following sequence:
  1. Determine transmitter output power.
  2. Calculate the loss of every fiber span. Include fiber attenuation, splice loss and connector loss.
  3. Add passive component losses. Include ROADMs, WSSs, multiplexers, demultiplexers and other optical components.
  4. Determine amplifier gain. In a conventional loss-compensating system, amplifier gain is typically selected to approximately compensate for the preceding span loss.
  5. Determine amplifier noise figure.
  6. Calculate ASE generated by each amplifier.
  7. Propagate the signal power through the complete link.
  8. Propagate and accumulate the ASE contributions.
  9. Calculate receiver OSNR.
  10. Compare calculated OSNR with the transceiver's required OSNR.
  11. Calculate OSNR margin.

Worked OSNR Example

Consider a simplified optical link with the following parameters:
Parameter Value
Wavelength 1550 nm
Transmitter power 0 dBm
Fiber span length 80 km
Fiber attenuation 0.22 dB/km
Splice loss 0.05 dB per splice
Number of splices 8
Connector loss 0.5 dB total
EDFA noise figure 5 dB
Reference bandwidth 0.1 nm
The fiber attenuation is: 80 km × 0.22 dB/km = 17.6 dB Splice loss is: 8 × 0.05 dB = 0.4 dB Including the connector loss: Total passive loss = 17.6 + 0.4 + 0.5 = 18.5 dB The amplifier must therefore provide approximately 18.5 dB of gain to restore the optical power, subject to the actual system power plan. The amplifier simultaneously introduces ASE. The final OSNR is therefore determined not simply by the receiver optical power but by the relationship between the received signal and the accumulated ASE.

Note: This simplified example illustrates the calculation process. Real optical system engineering must also account for amplifier operating point, gain tilt, channel loading, ROADM filtering, nonlinear effects, implementation penalties and the manufacturer's transceiver specifications.

OSNR Margin

The number that matters most in network engineering is often not simply the measured or calculated OSNR, but the OSNR margin. OSNR margin = Available OSNR − Required OSNR For example, suppose a transceiver requires 21 dB OSNR and the optical link provides 25 dB:

OSNR Margin = 25 − 21 = 4 dB

A positive margin indicates that the link exceeds the specified OSNR requirement. OSNR margin provides protection against uncertainties and degradation caused by factors such as:
  • Additional optical loss
  • Connector degradation
  • Amplifier noise figure variation
  • Additional ROADM or WSS filtering
  • Temperature and environmental effects
  • Future network modifications
  • Measurement uncertainty
  • Modeling uncertainty

OSNR Is Important—but It Is Not the Whole Story

A high OSNR does not automatically guarantee that a modern coherent optical channel will operate correctly. Other impairments can affect transmission performance, including:
  • Chromatic dispersion
  • Polarization-mode dispersion (PMD)
  • Polarization-dependent loss (PDL)
  • Nonlinear interference
  • Laser phase noise
  • Frequency offset
  • ROADM and WSS filtering
  • Inter-channel crosstalk
  • Transceiver implementation penalties
For this reason, modern optical network engineering increasingly distinguishes conventional ASE-limited OSNR from broader measures such as Generalized SNR (GSNR), which can account for additional noise and nonlinear impairments. OSNR measures optical signal quality with respect to optical noise—primarily ASE in amplified systems. It should not be interpreted as a complete measurement of every impairment affecting a coherent optical transmission system.

OSNR vs. Power Budget

OSNR and optical power budget are related, but they answer different questions.
Parameter Primary Question
Optical Power Budget Is sufficient optical power available at the receiver?
OSNR How much optical signal exists relative to ASE noise?
BER How accurately is the digital information being recovered?
GSNR What is the effective signal-to-noise performance when additional impairments are considered?
A receiver can therefore have adequate optical power but insufficient OSNR, or adequate OSNR but experience another impairment that prevents reliable operation.

Why OSNR Is a Critical Parameter for 400G, 800G and Beyond

The evolution from 100G to 400G, 800G and higher-capacity coherent transmission has made OSNR increasingly important. Modern systems achieve higher capacity through combinations of:
  • Higher-order modulation
  • Higher symbol rates
  • Probabilistic constellation shaping
  • Advanced forward error correction
  • Higher optical launch power
  • Wider channel bandwidths
  • More sophisticated digital signal processing
These technologies increase capacity and spectral efficiency, but they also make optical system design more dependent on the relationship between signal power, ASE noise and other transmission impairments. The result is a fundamental engineering tradeoff:

Higher Capacity ↔ Higher Spectral Efficiency ↔ Greater OSNR Sensitivity

OSNR Frequently Asked Questions

What is a good OSNR for fiber optic communication?

There is no single value that is considered "good" for every optical system. The required OSNR depends on the modulation format, baud rate, FEC, receiver implementation and other system parameters. A 20 dB OSNR may be excellent for one transmission mode but insufficient for another.

What is the typical OSNR reference bandwidth?

OSNR is commonly referenced to 0.1 nm. At approximately 1550 nm, this corresponds to about 12.5 GHz.

What causes OSNR to decrease?

In amplified optical systems, the primary cause is the accumulation of ASE generated by optical amplifiers. Additional effects can result from optical filtering, gain tilt, component losses and other impairments.

Does an optical amplifier improve OSNR?

No. An amplifier restores optical power lost through fiber and passive components, but it also generates ASE. Amplification therefore does not restore the original OSNR.

How is OSNR calculated?

OSNR is calculated by dividing signal power by noise power using a common reference bandwidth:

OSNR = Psignal / Pnoise

In dB: OSNRdB = Psignal(dBm) − Pnoise(dBm)

Can OSNR be measured with an Optical Spectrum Analyzer?

Yes. OSNR is commonly measured from the optical spectrum using an OSA. However, conventional methods can become less accurate when high-baud-rate channels occupy most of the available channel bandwidth or when ROADMs and WSSs have shaped the ASE spectrum.

What is the difference between OSNR and BER?

OSNR measures the ratio of optical signal power to optical noise power. BER measures errors in the recovered digital information. OSNR can be measured optically before individual DWDM channels are converted to electrical signals, whereas BER requires access to the recovered data stream.

Does higher-order modulation require higher OSNR?

Generally, yes. Higher-order modulation places more constellation points within the same signal space, increasing spectral efficiency but reducing the distance between constellation points and making the signal more sensitive to noise.

Is OSNR the same as SNR?

No. OSNR traditionally refers to the optical signal relative to optical noise, particularly ASE in amplified optical systems. SNR and GSNR can incorporate broader noise and impairment models and are increasingly important in modern coherent optical system engineering.

Go Deeper: Optical Networking Training

Understanding OSNR is only one part of modern optical network engineering. Engineers designing high-capacity optical networks also need to understand fiber characteristics, WDM systems, optical amplifiers, coherent optics, modulation, DSP, FEC, dispersion, nonlinear impairments and network architecture.

For a foundation in optical networking, the Certified Optical Network Associate (CONA) provides practical, vendor-neutral training covering fiber, WDM, optical components, transceivers, optical amplifiers, OSNR and network design.

For engineers who want to go deeper into coherent transmission, DSP, advanced modulation, high-speed networks and next-generation optical architectures, the Certified Optical Network Engineer (CONE) provides advanced, vendor-neutral training.

For professionals interested in fiber characterization and advanced testing, see the Certified Fiber Characterization Engineer (CFCE).
